DIN 2527 Flange Blind, Blank

Views: Post Date: 11/4/2011 11:42:35 AM

DIN 2527 FLANGE BLIND

Dimensions & Approximate Masses DIN 2527 Flange Blind

Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100
Blindflansche Nenndruck 6 bis 100
Brides plaines, pressions nominales 6 à 100

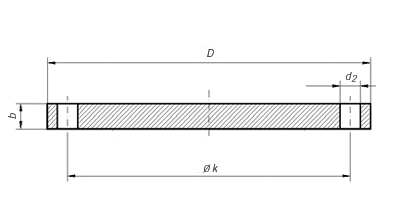

DIN 2527 PN10 BLIND FLANGE
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	95	14	65	4	M 12	14	0,72
20	105	16	75				1,01
25	115	16	85				1,23
32	140	16	100		M 16	18	1,8
40	150	16	110				2,09
50	165	18	125				2,88
65	185	18	145				3,66
80	200	20	160				4,77
100	220	20	180	8			5,65
125	250	22	210				8,42
150	285	22	240		M 20	22	10,4
200	340	24	295				16,5
250	395	26	350	12			24
300	445	26	400	12			30,9
350	505	26	460	16			40,6
400	565	26	515	16	M 24	26	49,4
500	670	28	620	20	M 24	26	75

DIN 2527 PN16 BLIND FLANGE
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	95	14	65	4	M 12	14	0,72
20	105	16	75				1,01
25	115	16	85				1,23
32	140	16	100		M 16	18	1,8
40	150	16	110				2,09
50	165	18	125				2,88
65	185	18	145				3,66
80	200	20	160	8			4,77
100	220	20	180				5,65
125	250	22	210				8,42
150	285	22	240		M 20	22	10,4
200	340	24	295	12	M 20	22	16,1
250	405	26	355		M 24	26	24,9
300	460	28	410				35,1
350	520	30	470	16			47,8
400	580	32	525	16	M 27	30	63,5
500	715	36	650	20	M 30	33	102

NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
