Export EN1092-1 TYPE02 LOOSE FLANGES, PN6 PN10 FORGING FLANGES, CARBON STEEL PIPE FLANGES

Views: Post Date: 10/21/2015

Exporting	Export EN1092-1 TYPE02 LOOSE FLANGES, PN6 PN10 FORGING FLANGES, CARBON STEEL PIPE FLANGES	Quantity	2000Pcs
Standard	EN1092-1	Size	DN15 - DN1500
Material	A105, SS400, S235JR	Price	INQUIRY
Post Date	10/21/2015 7:26:36 PM	Validity Date	1/19/2016

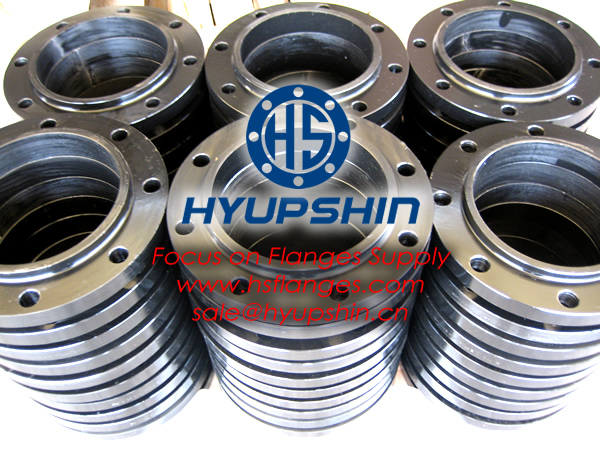

EN1092-1 TYPE02 LOOSE FLANGES, PN6 PN10 FORGING FLANGES, CARBON STEEL PIPE FLANGES

JINAN HYUPSHIN FLANGES CO., LTD is specialized in producing and exporting carbon steel flanges, the annual output is 3000 tons of flanges per month.

The steel flanges of EN1092-1, EN1092.1 standards include:

(1) EN1092-1 Type 01B, Plate Flange, Flat Flange, Plain Flange, PN6, PN10, PN16, PN25, PN40, PN63, PN100, C22.8, RST37.2, S235JR, P245GH, P250GH, P265GH Carbon Steel, DN15-DN2000.

(2) EN1092-1 Type 02, Loose Flange, Lapped Flange, PN6, PN10, PN16, C22.8, RST37.2, S235JR, P245GH, P250GH, P265GH Carbon Steel, DN15-DN1000.

(3) EN1092-1 Type 05, Blind Flange, Blank Flange, PN6, PN10, PN16, PN25, PN40, PN63, PN100, C22.8, RST37.2, S235JR, P245GH, P250GH, P265GH Carbon Steel, DN15-DN2000.

(4) EN1092-1 Type 11, Weld Neck Flange, WNRF Flange, PN6, PN10, PN16, PN25, PN40, PN63, PN100, C22.8, RST37.2, S235JR, P245GH, P250GH, P265GH Carbon Steel, DN15-DN1500

(5) EN1092-1 Type 13, Threaded Flange, Screwed Flange, PN6, PN16, C22.8, RST37.2, S235JR, P245GH, P250GH, P265GH Carbon Steel, DN15-DN150.

Material

1) Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L

Surface Antirust:

Surface antirust 1: Antirust light oil

Surface antirust 2: Black paint coating

Surface antirust 3: Yellow paint coating

Surface antirust 4: Galnavized (Hot Dipped Galvanized or Cold Galvanized or Electro Galvanized)

Surface Finish:

Surface finish 1: Stock finish

Surface finish 2: Sprial serrated

Surface finish 3: Two or three grooves (Water Lines)

Surface finish 4: Smooth finish

Terms

1) Payment: Irrevocable L/C at sight or T/T, D/P

2) Delivery term FOB China Port or CIF Buyer's Port

3) Packing: Plywood Pallet

4) Minimum Order Quantity: 100Pcs.

Export EN1092-1 TYPE02 LOOSE FLANGES, PN6 PN10 FORGING FLANGES, CARBON STEEL PIPE FLANGES


Keywords:	INQUIRY
